HASTELLOY PRODUCT

• Application
• Other, Aerospace, chemical processing, power generation, marine, and high-temperature structural components

• Coating Type
• Uncoated / as drawn

• Color
• Metallic/Silver

• Composition
• Nickel, Molybdenum, Chromium, Iron, Tungsten (varies by grade)

• Corrosion Resistant
• Excellent resistance to pitting, stress-corrosion cracking, and oxidizing atmospheres

• Diameter
• 0.1 mm to 8 mm (customized on request)

• Dimension (L*W*H)
• As per customer specification or coil form

• Finish Type
• Smooth / Bright

• Grade
• Hastelloy C276 / C22 / B2 / X and others

• Hardness
• 225 HB max (C276 grade)

• Heat Resistance
• Yes

• Material Composition %
• Nickel ~57%, Molybdenum ~16%, Chromium ~16%, Iron ~5%, Tungsten ~4% (can vary by grade)

• Material Grade
• Hastelloy C276, C22, B2, X

• Product Form
• Coil / Spool / Straight length

• Product Name
• Other, Hastalloy Wire

• Recyclable
• Yes

• Shape
• Other, Round / Customized

• Size
• Customizable sizes

• Steel Product Type
• Other, Wire

• Steel Standard
• Other, ASTM B574, ASTM B366, ASTM B622

• Steel Type
• Other, Nickel-Based Superalloy

• Surface
• Bright / Clean / Polished

• Tensile Strength
• 690 MPa Min (C276 grade)

• Thickness
• Standard wire thickness, as specified (customizable)

• Usage
• Industrial applications where superior corrosion resistance is required

• Weight
• Varies as per length and diameter

• Application
• Other, Chemical processing, Petrochemical industries, Gas handling, Pollution control, Flue gas desulfurization, Aerospace, Marine industries

• Coating Type
• Uncoated

• Color
• Metallic Silver/Gray

• Composition
• Nickel, Chromium, Molybdenum-based alloy

• Corrosion Resistant
• Yes, excellent resistance to corrosion in a wide range of severe environments

• Diameter
• N/A (Sheet Product)

• Dimension (L*W*H)
• Customized as per requirement

• Finish Type
• Smooth/Matte/Bright

• Grade
• Hastelloy C276, C22, B2, X, G30 (as requested)

• Hardness
• Rockwell B80 (typical)

• Heat Resistance
• Yes

• Material Composition %
• Nickel 54-59%, Chromium 14.5-16.5%, Molybdenum 15-17%, others as per grade

• Material Grade
• Hastelloy C276 / C22 / B2

• Product Form
• Sheet

• Product Name

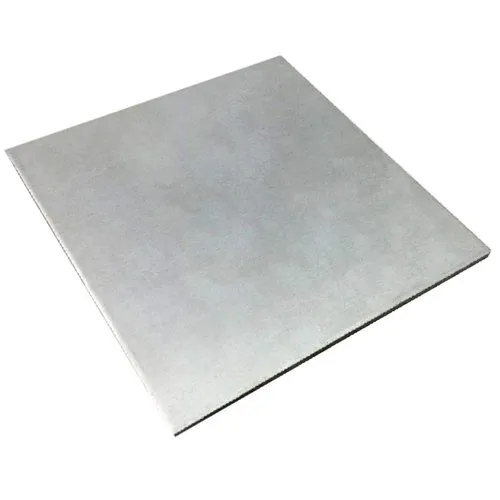

• Other, HASTALLOY Sheet

• Recyclable
• Yes

• Shape
• Other, Rectangular / Square Sheet

• Size
• 1000 mm x 2000 mm / 1250 mm x 2500 mm / 1500 mm x 3000 mm or customized

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM B575, ASTM B622, ASME SB-575, UNS N10276 (for C276)

• Steel Type
• Other, Nickel Alloy Steel

• Surface
• Smooth, Matt, Bright

• Tensile Strength
• Min. 690 MPa (for C276 grade)

• Thickness
• 0.5 mm to 50 mm (depending on specification)

• Usage
• For making tanks, vessels, piping, chemical handling equipment

• Weight
• Depends on thickness and dimensions

• Application
• Other, Chemical Processing, Petrochemical Industries, Power Generation, Pollution Control Equipment, Desulfurization Systems, Marine Applications

• Coating Type
• None (Standard); Custom Coating on Request

• Color
• Silver or Metallic Grey

• Composition
• Nickel-Chromium-Molybdenum Alloy

• Corrosion Resistant
• Excellent

• Diameter
• N/A (Plate Form)

• Dimension (L*W*H)
• Custom Sizes Available

• Finish Type
• Mill, Polished Finish

• Grade
• Hastelloy C276, C22, B2, X

• Hardness
• Rockwell B90 Max

• Heat Resistance
• Yes

• Material Composition %
• Nickel 54-61%, Molybdenum 15-17%, Chromium 14.5-16.5%, Iron up to 7%, other trace elements

• Material Grade
• C276, C22, B2, X

• Product Form
• Flat Plate

• Product Name

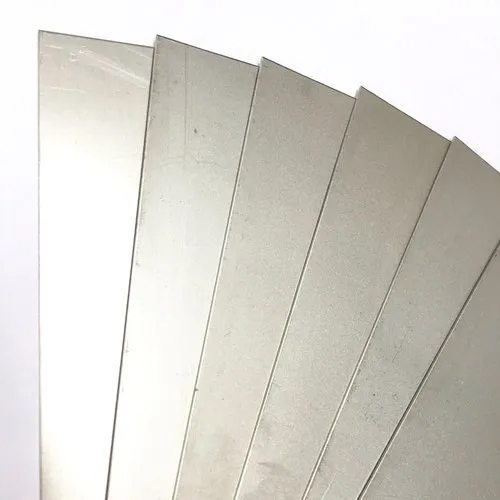

• Other, HASTALLOY Plate

• Recyclable
• Yes

• Shape
• Other, Rectangular

• Size
• 1500mm x 6000mm standard or as required

• Steel Product Type
• Other, Plates

• Steel Standard
• Other, ASTM B575, ASME SB575

• Steel Type
• Other, Nickel Alloy

• Surface
• Smooth, Pickled, Polished, Bright

• Tensile Strength
• 690 MPa (min) for C276

• Thickness
• 5 mm to 100 mm

• Usage
• High Corrosion Environments, Industrial Applications

• Weight
• Depends on Size & Thickness

• Application
• Other, Chemical Processing, Power Generation, Petrochemical, Pharmaceutical, Marine, Pulp & Paper Industries

• Coating Type
• Uncoated / Anti-rust Oil (Optional)

• Color
• Metallic Grey/Silver

• Composition
• Nickel, Molybdenum, Chromium, Iron, Trace Elements

• Corrosion Resistant
• Excellent (suitable for severe environments)

• Diameter
• 1/2 NB to 48 NB or custom

• Dimension (L*W*H)
• As per ASME/ANSI/DIN Standards or Custom

• Finish Type
• Machined / Polished

• Grade
• Hastelloy C276, C22, B2, C4, X, G30, etc.

• Hardness
• Rockwell B90 (typical)

• Heat Resistance
• Yes

• Material Composition %
• Nickel (min. 57%), Molybdenum (15-17%), Chromium (14.5-16.5%), Iron (4-7%), Tungsten (3-4.5%)

• Material Grade
• Hastelloy C276 (most common), other grades available

• Product Form
• Forged or Plate Flange

• Product Name
• Other, HASTALLOY FLANGES

• Recyclable
• Yes

• Shape
• Other, Round (Flange Shape)

• Size
• Standard & Customized sizes

• Steel Product Type
• Other, Flange

• Steel Standard
• Other, ASTM B564, ASME SB564, DIN, EN, JIS, ISO

• Steel Type
• Other, Alloy Steel (Nickel-based)

• Surface
• Bright, Polished, Shot Blasted, or as required

• Tensile Strength
• 690 MPa (min), varies by grade

• Thickness
• 5mm to 40mm / As required

• Usage
• Pipe Connections, Pressure Vessels, Valves, Equipment Joints

• Weight
• Varies as per Size and Type

• Application
• Other, Chemical Processing, Petrochemical, Power Generation, Pharmaceutical, Marine, Pulp and Paper, Gas Processing, Oil & Gas Industries

• Coating Type
• No coating; Natural finished or pickled

• Color
• Metallic Silver Grey

• Composition
• Nickel, Molybdenum, Chromium, Iron with trace elements

• Corrosion Resistant
• Yes, excellent resistance to pitting, stress corrosion cracking and oxidizing atmospheres

• Diameter
• 1/2 NB to 24 NB (Seamless), up to 48 (Welded/ERW)

• Dimension (L*W*H)
• As per ASME/ANSI B16.9, B16.11, MSS-SP43, or custom as per requirement

• Finish Type
• Bright or Matte, as required

• Grade
• Hastelloy C276, C22, B2, X, G, C2000, etc.

• Hardness
• Rockwell B89 max (varies by grade)

• Heat Resistance
• Yes

• Material Composition %
• Nickel 57%, Molybdenum 16%, Chromium 15.5%, Iron 5%, others trace (typical for C276)

• Material Grade
• Hastelloy C276, C22, B2, X

• Product Form
• Forged/Seamless/Welded Fittings

• Product Name

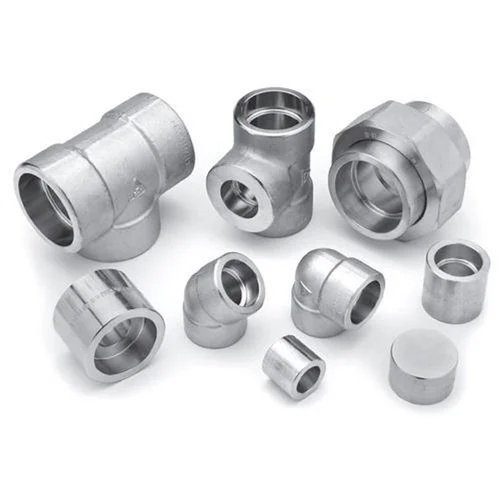

• Other, Hastalloy Fittings

• Recyclable
• Yes, 100%

• Shape
• Other, Elbow, Tee, Reducer, Coupling, Union, Nipple, Cross, Cap, Stub End, etc.

• Size
• Customized or Standard sizes per specification

• Steel Product Type
• Other, Pipe Fittings

• Steel Standard
• Other, ASTM B366, ASME SB366, DIN, JIS, EN

• Steel Type
• Other, Nickel-based Alloy

• Surface
• Bright, Pickled, Polished, Sandblasted or as required

• Tensile Strength
• Up to 790 MPa (115 ksi) (varies by grade)

• Thickness
• Sch 10S to XXS or custom

• Usage
• Joining, redirecting, capping, reducing, or splitting the flow in piping systems

• Weight
• Varies with size and fitting type

• Application
• Other, Chemical Processing, Petrochemical, Marine, Power Generation

• Coating Type
• None or as specified

• Color
• Metallic Grey

• Composition
• Nickel, Molybdenum, Chromium, Iron, Tungsten

• Corrosion Resistant
• Excellent (suitable for harsh chemical environments)

• Diameter
• 6 mm to 300 mm (custom as request)

• Dimension (L*W*H)
• Custom as per requirement

• Finish Type
• Bright, Polished

• Grade
• Hastelloy C276, C22, B2, X, G30

• Hardness
• Rockwell B 80-95

• Heat Resistance
• Yes

• Material Composition %
• Nickel 55-60%, Molybdenum 15-17%, Chromium 14.5-16.5%, Iron 4-7%, Tungsten 3-4.5%

• Material Grade
• C276, C22, B2, X, G30

• Product Form
• Bar

• Product Name

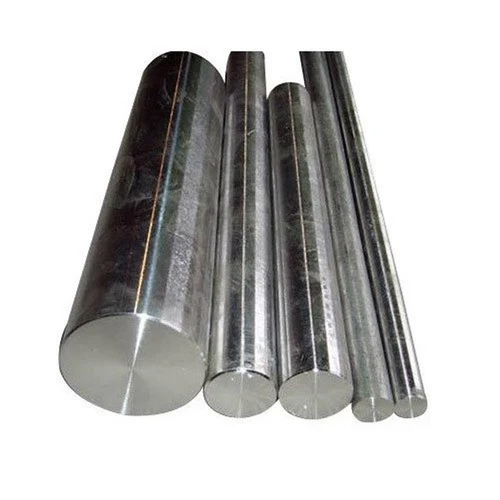

• Other, HASTALLOY ROUND BAR

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Custom lengths and diameters

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, ASTM B574, ASTM B338, ASTM B622

• Steel Type
• Other, Nickel Alloy Steel

• Surface
• Bright, Polished, Black, or as required

• Tensile Strength
• 690 MPa (min) for C276

• Thickness
• Custom as required

• Usage
• Fabrication, Machining, Repair, Construction

• Weight
• Depends on size and length

• Application
• Other, Chemical Processing, Petrochemical, Power Generation, Marine, Oil & Gas Industries

• Coating Type
• Uncoated / Custom on request

• Color
• Metallic Grey

• Composition
• Nickel, Molybdenum, Chromium, Iron (varies by grade)

• Corrosion Resistant
• Highly corrosion resistant to acids and chlorides

• Diameter
• 1/8 NB to 12 NB (as per requirement)

• Dimension (L*W*H)
• Custom lengths as per requirement

• Finish Type
• Bright Annealed / Polished

• Grade
• C276, C22, B2, X, G30 (as per requirement)

• Hardness
• Rockwell B90 Max (varies with grade)

• Heat Resistance
• Yes

• Material Composition %
• Nickel (approx. 57%), Chromium (approx. 16%), Molybdenum (approx. 15%), Iron (approx. 5%), trace elements

• Material Grade
• Hastelloy C276 / C22 / B2 / others

• Product Form
• Pipe

• Product Name

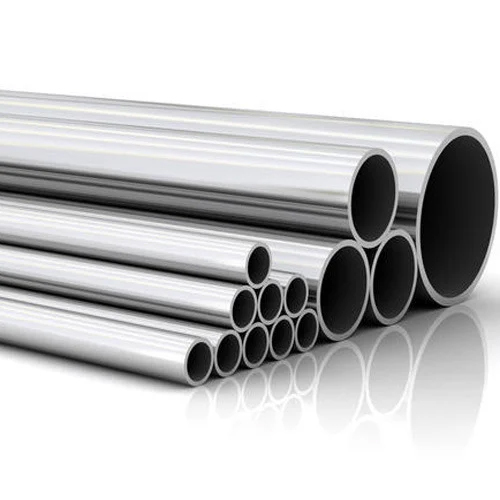

• Other, Hastelloy Pipe

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Customizable

• Steel Product Type
• Other, Seamless and Welded Pipes

• Steel Standard
• Other, ASTM B622/B619/B626

• Steel Type
• Other, Nickel Alloy

• Surface
• Polished / Pickled

• Tensile Strength
• 690 MPa (minimum, for C276)

• Thickness
• 1 mm to 50 mm (customizable)

• Usage
• Transporting aggressive and corrosive fluids

• Weight
• Varies with size and thickness
