Titanium Product

• Application
• Other, Industrial, Medical, Aerospace, Chemical Processing, Marine

• Coating Type
• Uncoated/Customized

• Color
• Silver grey

• Composition
• Titanium (Ti) purity varies by grade

• Corrosion Resistant
• Yes

• Diameter
• 0.1 mm to 6 mm

• Dimension (L*W*H)
• Customized as required

• Finish Type
• Bright, Polished, Pickled

• Grade
• GR1, GR2, GR5, GR7, GR9, GR12

• Hardness
• 70 HV - 380 HV (depends on grade)

• Heat Resistance
• Yes

• Material Composition %
• Up to 99.7% Ti, depends on grade

• Material Grade
• Commercially Pure & Alloy Grades

• Product Form
• Wire

• Product Name
• Other, Titanium Wire

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Customized lengths and diameters available

• Steel Product Type
• Other, Wire

• Steel Standard
• Other, ASTM B863, ASTM F67, ASTM F136

• Surface
• Bright, Pickled, Polished

• Tensile Strength
• 240 MPa - 1100 MPa (varies by grade)

• Thickness
• 0.1 mm to 6 mm

• Usage
• Welding, Fasteners, Medical instruments, Jewelry, Chemical Equipment

• Weight
• As per size and length

• Application
• Other, Aerospace, chemical processing, marine engineering, medical equipment, power generation, and automotive industries

• Coating Type
• Uncoated (Standard) / Custom Coating on Request

• Color
• Metallic Grey / Silver

• Composition
• Titanium or Titanium Alloy as specified

• Corrosion Resistant
• Excellent

• Diameter
• Not Applicable (Flat Sheet)

• Dimension (L*W*H)
• Customized as per requirement

• Finish Type
• Smooth / Brushed / Polished

• Grade
• Grade 2 / Grade 5 (Ti-6Al-4V) / CP Titanium

• Hardness
• Rockwell B70 - C36 (Depending on Grade)

• Heat Resistance
• Yes

• Material Composition %
• >99% Ti (for CP); Al 6%, V 4% (for Grade 5)

• Material Grade
• Grade 1, Grade 2, Grade 5

• Product Form
• Sheet / Plate

• Product Name

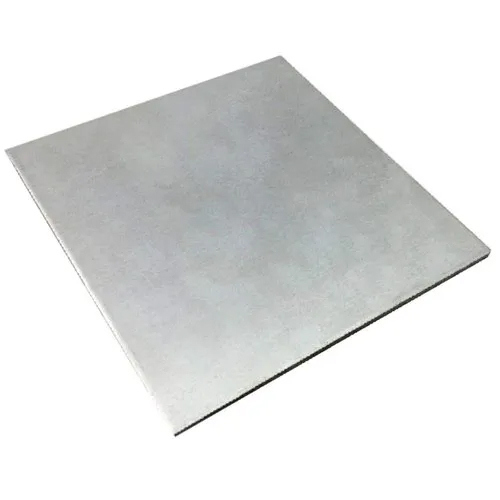

• Other, Titanium Sheet

• Recyclable
• Yes

• Shape
• Other, Flat Sheet / Plate

• Size
• Standard sizes; custom cutting available

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM B265, ASME SB265

• Steel Type
• Other, Not Applicable (Pure Titanium/Alloy)

• Surface
• Smooth / Pickled / Polished

• Tensile Strength
• 350 MPa - 950 MPa (Depending on Grade)

• Thickness
• 0.5 mm to 60 mm

• Usage
• High-performance and corrosion-resistant structural applications

• Weight
• Varies as per dimensions

• Application
• Other, Aerospace, Chemical Processing, Medical Devices, Marine, Power Generation

• Coating Type
• None (supplied as bare titanium)

• Color
• Silver Gray

• Composition
• Titanium (with possible alloying elements such as Al, V, Pd, Mo)

• Corrosion Resistant
• Excellent

• Dimension (L*W*H)
• Customizable (e.g., 1000 mm x 2000 mm x 5 mm)

• Finish Type
• Smooth, Matte, Brushed

• Grade
• Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 (most common: Grade 2 and Grade 5)

• Hardness
• Grade 2: ~160 HV; Grade 5: ~349 HV

• Heat Resistance
• Yes

• Material Composition %
• Grade 2: Ti 99.2%; Grade 5: Ti 90%, Al 6%, V 4%

• Material Grade
• Grade 2 (Commercially Pure Titanium), Grade 5 (Ti-6Al-4V)

• Product Form
• Plate / Sheet

• Product Name

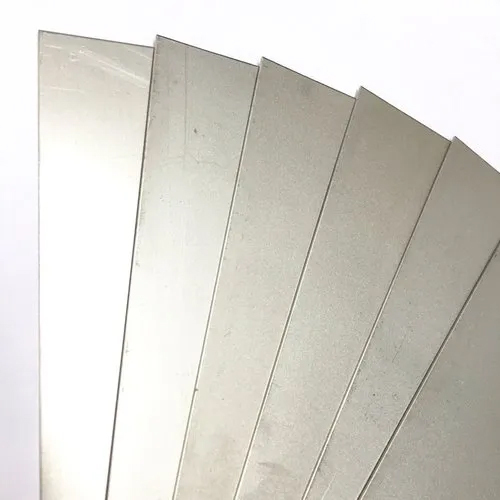

• Other, Titanium Plate

• Recyclable
• Yes

• Shape
• Other, Rectangular / Square

• Size
• Custom cut as per requirements, typical: 1000x2000 mm, 1250x2500 mm, etc.

• Steel Product Type
• Other, Plate

• Steel Standard
• Other, ASTM B265, AMS 4911, ASME SB265

• Steel Type
• Other, Not applicable (Pure Titanium / Titanium Alloy)

• Surface
• Pickled, Polished, Sandblasted, Brushed

• Tensile Strength
• Grade 2: min 370 MPa; Grade 5: min 895 MPa

• Thickness
• 0.5 mm - 100 mm

• Usage
• Structural components, Pressure vessels, Heat exchangers, Medical implants, Marine parts

• Weight
• Varies depending on size and thickness

• Application
• Other, Chemical processing, aerospace, marine, medical equipment, heat exchangers

• Coating Type
• Uncoated / Custom on request

• Color
• Metallic Grey

• Composition
• Titanium 99.2% min (for Gr.2), with alloy elements as per grade

• Corrosion Resistant
• Excellent

• Diameter
• 6 mm to 914 mm

• Dimension (L*W*H)
• Custom, as per client request

• Finish Type
• Bright / Matte / Polished

• Grade
• Gr2, Gr5, Gr7, Gr9, Gr12

• Hardness
• 160 HV (approx.)

• Heat Resistance
• Yes

• Material Composition %
• Ti: 99.2% min (Grade 2), Variation with alloy grades

• Material Grade
• Grade 2, Grade 5, Grade 7, Grade 9, Grade 12

• Product Form
• Pipe / Tube

• Product Name

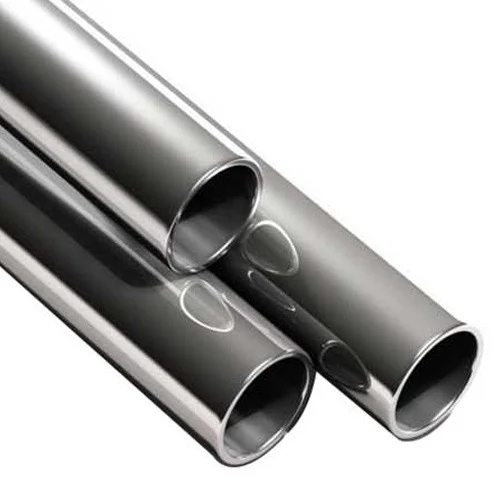

• Other, Titanium Pipe

• Recyclable
• Yes

• Shape
• Other, Round, Square, Rectangular

• Size
• Custom and standard sizes

• Steel Product Type
• Other, Seamless / Welded Pipe

• Steel Standard
• Other, ASTM B338, ASTM B861, ASTM B862

• Steel Type
• Other, Titanium Alloy

• Surface
• Polished / Pickled / Annealed

• Tensile Strength
• 345 - 950 MPa (depending on grade)

• Thickness
• 0.5 mm to 30 mm

• Usage
• High performance, corrosion resistant piping

• Weight
• Depends on size and length

• Application
• Other, Industrial, Chemical Processing, Petrochemical, Aerospace, Marine, Oil & Gas

• Coating Type
• Uncoated / Natural Oxide Layer

• Color
• Silver Grey (Metallic)

• Composition
• Titanium Alloy

• Corrosion Resistant
• Excellent

• Diameter
• 15 mm to 600 mm or customized

• Dimension (L*W*H)
• Customized as per requirement

• Finish Type
• Smooth/Polished

• Grade
• Gr2, Gr5, Gr7, Gr9, Gr12 (As per standards)

• Hardness
• Rockwell C 36-41 (for Grade 5)

• Heat Resistance
• Yes

• Material Composition %
• Ti 99.2% (Grade 2), Ti-6Al-4V (Grade 5)

• Material Grade
• Titanium Grade 2 / Grade 5

• Product Form
• Forged Flange

• Product Name

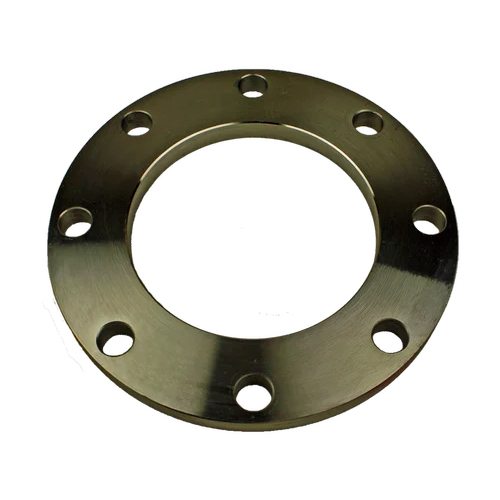

• Other, Titanium Flanges

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• From 1/2 to 24 or as required

• Steel Product Type
• Other, Flange

• Steel Standard
• Other, ASTM B381, ASME SB381

• Steel Type
• Other, Not Applicable (Titanium)

• Surface
• Polished / Machined

• Tensile Strength
• 240 MPa to 950 MPa (depending on grade)

• Thickness
• Depends on flange type, ranges from 5 mm and above

• Usage
• Pipe Connections, Pressure Vessels, Heat Exchangers

• Weight
• Varies with size and type

• Application
• Other, Industrial, Chemical Processing, Aerospace, Marine, Medical Equipment

• Coating Type
• None / Natural / Custom on request

• Color
• Metallic Silver / Grey

• Composition
• Titanium Alloy (Gr2: 99.2% Ti, Gr5: 90% Ti, 6% Al, 4% V)

• Corrosion Resistant
• Excellent

• Diameter
• 1/8 NB to 12 NB & Above (custom sizes available)

• Dimension (L*W*H)
• Customizable as per requirement

• Finish Type
• Bright / Pickled / Polished

• Grade
• Grade 2, Grade 5 (Ti-6Al-4V), Grade 7

• Hardness
• Grade 2: 160 HB max, Grade 5: 349 HB max

• Heat Resistance
• Yes

• Material Composition %
• Gr2: Ti 99.2%; Gr5: Ti 90%, Al 6%, V 4%

• Material Grade
• Grade 2, Grade 5, Grade 7

• Product Form
• Forged or Seamless

• Product Name

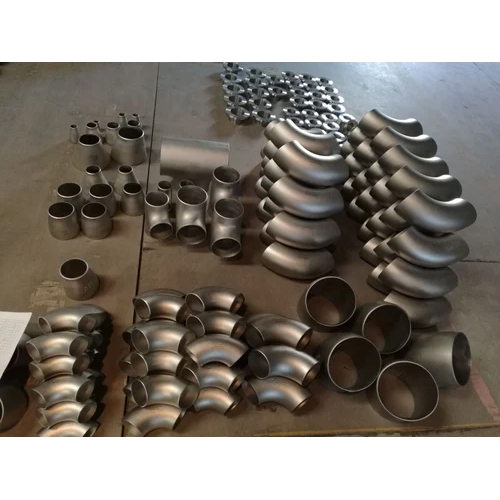

• Other, Titanium Fittings

• Recyclable
• Yes

• Shape
• Other, Elbow, Tee, Reducer, Coupling, Union, Nipple, Cap, Cross

• Size
• As per standard and custom requirements

• Steel Product Type
• Other, Fittings

• Steel Standard
• Other, ASTM B363, ASME SB363

• Steel Type
• Other, Not Applicable (Titanium Alloy)

• Surface
• Polished / Pickled / Sand Blasted

• Tensile Strength
• Grade 2: 345 MPa, Grade 5: 895 MPa

• Thickness
• From 0.5 mm up to 20 mm depending on fitting type

• Usage
• Pipe Fitting, Connection Joints, High-corrosive Networks

• Weight
• Varies according to size and specification

• Application
• Other, Heat exchangers, chemical processing, desalination plants, marine applications, power generation, petrochemical industries

• Coating Type
• Uncoated, can be customized with coatings

• Color
• Silver/Gray metallic

• Composition
• Commercially Pure Titanium or Titanium Alloy

• Corrosion Resistant
• Excellent

• Diameter
• 6 mm to 25.4 mm (tube coil), custom on request

• Dimension (L*W*H)
• Customized, available upon request

• Finish Type
• Pickled/Polished/Bright

• Grade
• Gr1, Gr2, Gr5, Gr7, Gr9, Gr12 (as per requirement)

• Hardness
• Brinell 70-160 HB (depending on grade)

• Heat Resistance
• Yes

• Material Composition %
• Ti 99.5% (for commercially pure grades)

• Material Grade
• Grade 1 to Grade 12, commercially pure or alloyed

• Product Form
• Coil/Roll

• Product Name
• Other, Titanium Coil

• Recyclable
• Yes

• Shape
• Other, Coil

• Size
• Customized sizes available

• Steel Product Type
• Other, Coil

• Steel Standard
• Other, ASTM B265, ASTM B338, ASTM B337, DIN, JIS, GB

• Steel Type
• Other, Titanium (Non-ferrous Metal)

• Surface
• Pickled, bright, polished, annealed

• Tensile Strength
• 240 MPa (for Gr2); up to 900 MPa (for Gr5)

• Thickness
• 0.3 mm to 8 mm

• Usage
• Industrial, chemical, marine, medical, heat transfer

• Weight
• Varies as per dimensions and customer requirements

• Application
• Other, Aerospace, Medical, Chemical Processing, Marine, Industrial, Automotive, Defense, Sports Equipment

• Coating Type
• None or as required

• Color
• Metallic Grey/Silver

• Composition
• Titanium alloy (with Aluminum, Vanadium, Iron depending on Grade)

• Corrosion Resistant
• Excellent

• Diameter
• 3mm to 400mm (as per requirement)

• Dimension (L*W*H)
• Custom or as required (Length: 1000mm - 6000mm typical)

• Finish Type
• Bright, Polished, Smooth, Pickled

• Grade
• GR2, GR5 (Ti-6Al-4V), GR7, GR9, GR12 or as specified

• Hardness
• Rockwell C 29-36 (varies with grade and heat treatment)

• Heat Resistance
• Yes

• Material Composition %
• Ti 90%, Al 6% (for Grade 5), V 4% (for Grade 5) or as per grade

• Material Grade
• Titanium Grade 2, Grade 5, or as per order

• Product Form
• Bar / Rod

• Product Name
• Other, Titanium Round Bar

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Custom sizes available

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, ASTM B348, ASTM F67, ASTM F136, AMS 4928, or as specified

• Steel Type
• Other, Not Applicable (Titanium alloy)

• Surface
• Polished, Peeled, Turned, Bright, Pickled

• Tensile Strength
• 350 MPa (Grade 2), up to 950 MPa (Grade 5), varies by grade

• Thickness
• Not Applicable (Refer Diameter)

• Usage
• Machining, Forging, Fabrication, Construction, Medical Implants, Aircraft components

• Weight
• Varies by size and length
